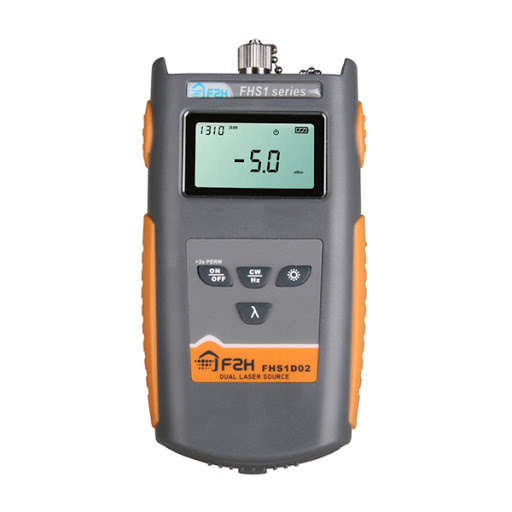

FHS1 Series Optical Laser Source offers excellent stability and portability for accurate fiber optic testing.Single output port provides stable laser power at dual wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated
-
Features:
– Both single mode and multiple mode laser are available

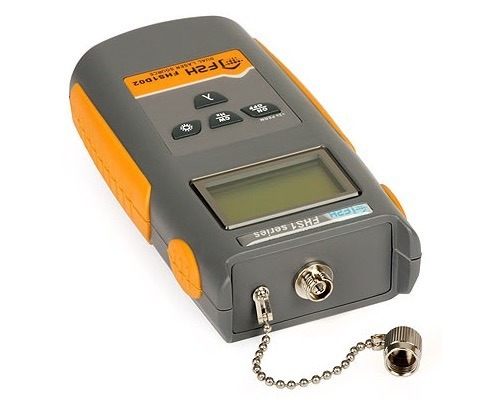

– Single output interface
– Rugged and portable
– Auto power-off function
– Integrated with continuous wave output function, 270Hz, 1kHz and 2kHz are availableSpecification:Output Wavelength: 850nm & 1300nm
Emitter: Type LD
Connector: FC/PC
Output Stability: Short Term (15minutes): <0.1dB
Long Term (5 Hours or above): <0.2dB
Central Wavelength: 850±10nm & 1300±20nm
Spectral Width: 5nm
Output Frequency: 270Hz, 1KHz, 2KHz
Output Power: -5dBm
Accuracy: ±1dB
Auto Power-off: Yes
Back-light: Yes
Operating Temperature: -10 to +50 degree
Storage Temperature: -20 to +70 degree

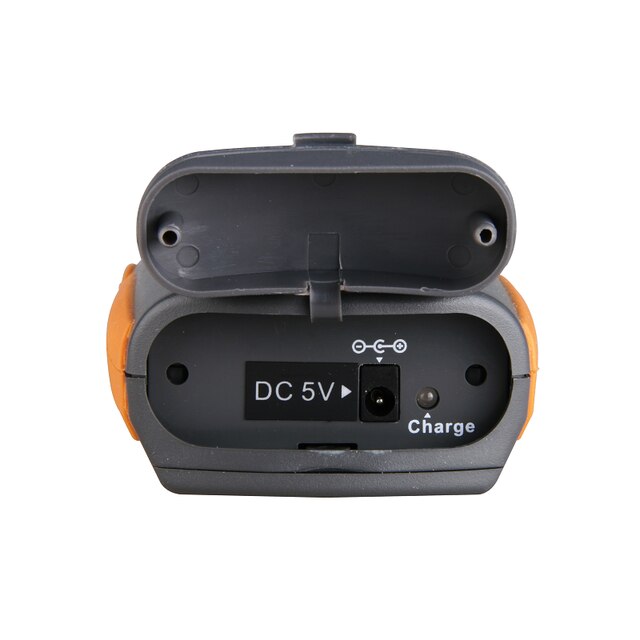

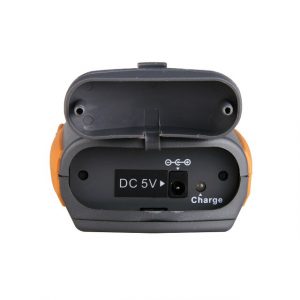

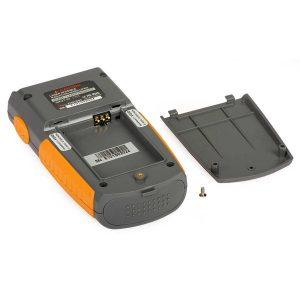

Power Supply: Li-ion Battery; 5V AC/DC Adapter
Dimension: 115mmL*65mmW*30mmH
Net Weight: 140g
Standard Accessories: FC/PC adapter, Li-ion battery, AC/DC charger, carrying bag, user manual
