ShinewayTech GE Ethernet Tester
R40,710.00 ___Incl. VAT

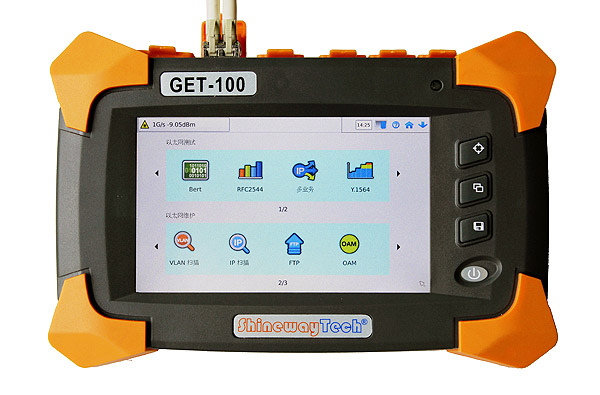

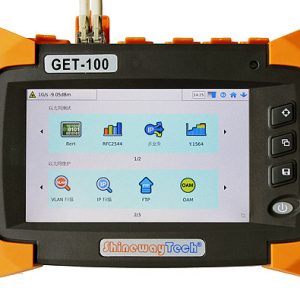

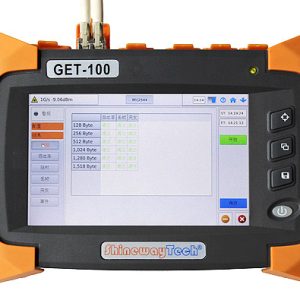

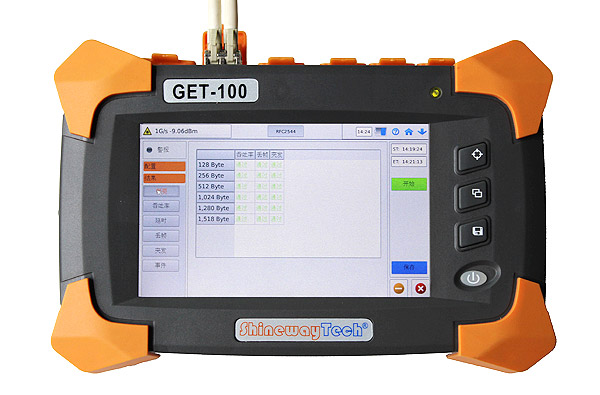

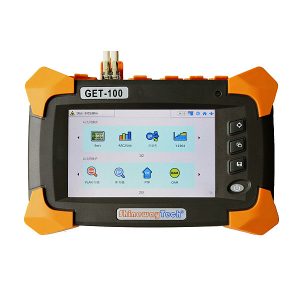

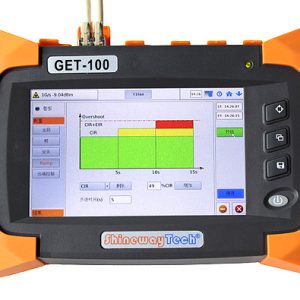

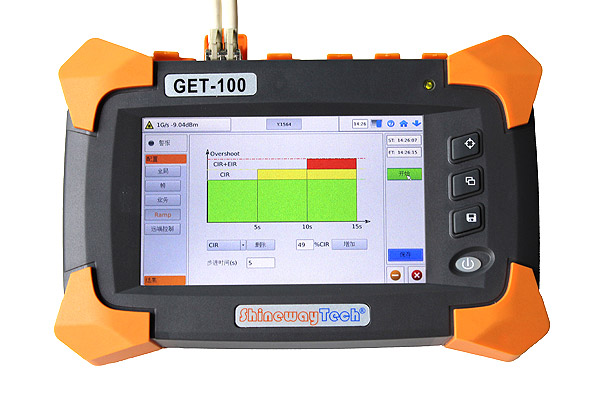

GET-100 Gigabit Ethernet Tester
GET-100 is a handheld 10M/100M/1000M gigabit Ethernet tester, used for the Ethernet installation, operation and maintenance services.
The GET-100 design in a small and portable device which provides packet capture, network monitoring, network performance testing, data generation, test leads and error test functions in an organic whole unit. It is widely used in network layer 1/2/3 BER test and RFC – 2544 test. GET-100 help maintenance staff quickly locate fault and analyze the network
● Smart and durable, field application ready
● 5-inch LCD color touch screen, smart navigation menu
● Results can be shown graphically and numerically
● RFC2544 auto test, quickly find the fault
● Full Y.1564 test
● LED indicator light, on-screen display and ICON
● Large capacity memory to save settings and test results
● Embedded software to easy upgrade
Functions
● L1/L2/L3 BER Test
● Integrated RFC2544 benchmark test： throughput, packet loss, latency, back-to-back
● Multi- stream traffic generation (10 traffic stream)
● Receiving end flow filter analysis
● VLAN test
● Connectivity test: PING, TRACE ROUTE,IP scan
● Through, terminal mode test and frame length, frame type, and utilization stat.
● Optical power test, optical module temperature, working current, voltage test
● Cable VCT: Identifying short circuit, open circuit, cable length fault location
● Service disruption time test
● Intelligent loop back test
● Jitter Test
● OAM and TCP testing
● USB data interface, driver-free
|
Model |
GET-100 |
|
Testing port |
Dual-RJ45 port:10/100/1000 BASE-T Dual-SFP port: 1000BASE-SX/LX/ZX |
| Standard |
IEEE 802.3 , RFC3393，RFC1242,RFC2544,Y.1564 |
| Connector |
RJ-45/USB |
| LED indicator |
POWER,PORT1 LINK/ACT,PORT2 LINK/ACT,ALARM |
| Display |
800×480 color LCD touch screen |
| Battery |
Lithium battery / AC adapter |
| Power Supply |
4 hours continuous operation |
| Operating temperature |
0℃~50℃ |
| Relative humidity |
0 to 95% (non-condensing) |
| Weight |
800g |
| Dimension |
233×110×64mm |
