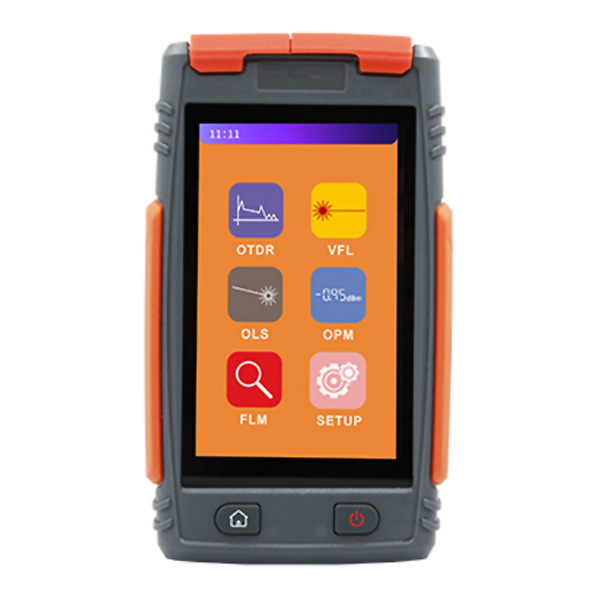

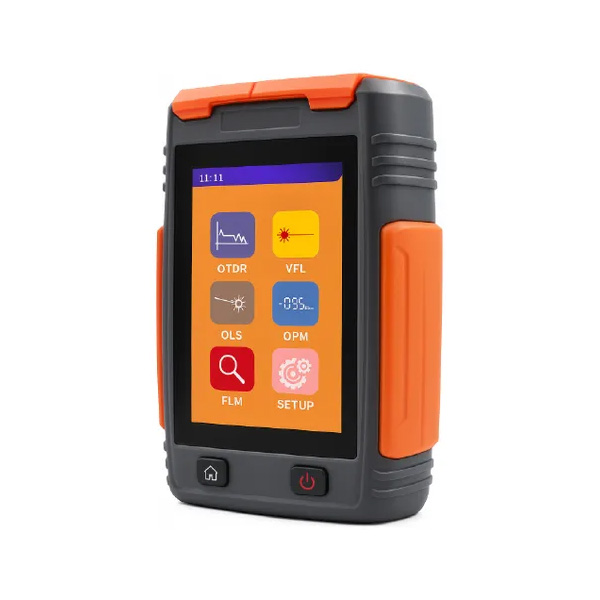

Grandway Mini1000 Smart OTDR

R5,146.00 ___Incl. VAT

4 inch color LCD, portable design and easy to carry
Multi functions 10mw VFL, stable laser source, optical power meter, Fiber link map and electric torch
Support Multi-point touch operation like Mobile phone
22dB dynamic range support over 60km optical fiber measurement
1650nm with filter live fiber testing module is available
Fast real-time test response and trace refresh speed

Download Brochure

Categories: OTDR, Test Equipment Tags: Grandway Mini1000, Grandway Mini1000 OTDR, Grandway Mini1000 Smart OTDR, GRANDWAY OTDR, Mini1000 Smart OTDR

Description

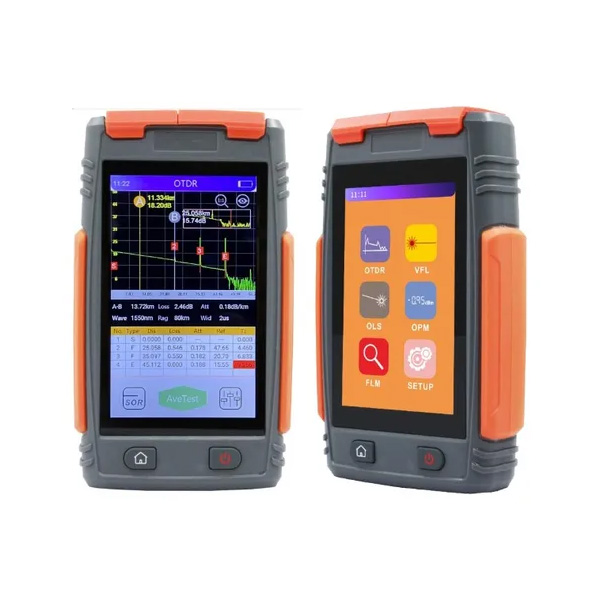

MINI1000 Smart OTDR is the latest OTDR of Grandway. Although it is a handheld OTDR, it can measure the length of optical fiber over 60km. Smaller size and more sensitive touch screen for testing, just like operating a mobile phone.4 inch color high definition display screen, visible even in strong sunlight.

Parameter

ltems	Specifications
Basic Version	M1000D: 1310/1550nm; 22/20dB; 3/10m deadzone
Basic Version	M1000S: 1650nm; 20dB; 3/10m deadzone
Pro Version	M1000D PRO: 1310/1550nm; 22/20dB; 1m/4m deadzone; Support bluetooth
	M1000S PRO: 1650nm; 20dB; 1m/4m deadzone; Support bluetooth
	M1000T PRO: 1310/1550/1650nm; 22/20/20dB; 1m/4m deadzone; Support bluetooth
Test Range	500m~120km
Pulse Width	3ns~10us
Test Time	5s~180s
Test Mode	Auto, Manual, Real-time
Sampling Point	30000
Distance Accuracy	±(1m+Test distance×3×10^-5 +Sampling resolution) (excluding IOR uncertainty)
Visual Fault Locator
Working wavelength	650±10nm
Output power	10mw; CW/1Hz/2Hz
Optical Laser Source
Working wavelength	Consistent with OTDR
Output power	＞-12dBm； CW/270Hz/1kHz/2kHz
Broadband Power Meter
Calibrated wavelength	850/1300/1310/1490/1550/1625/1650nm
Test range	-40~+10dBm
10G PON Selective Power Meter	Optional
Selective power test	Support 1490nm and 1577nm selective power testing separately
Calibrated wavelength	850/1300/1310/1490/1550/1577/1625/1650nm
Test range	-40~+10dBm
Others
Optical Interface	OTDR/OLS: SC/UPC (APC is available); VFL/OPM: 2.5mm universal port
Electrical Interface	USB Type-C charging port and data port
Display	4inch color touch screen
Data Storage	120M storage card
Battery	4000mAh lithium battery
Dimension	85x148x37mm
Weight	275g
