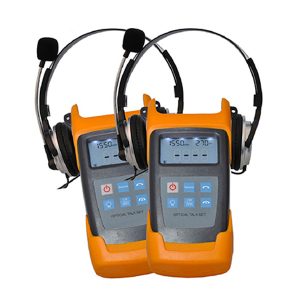

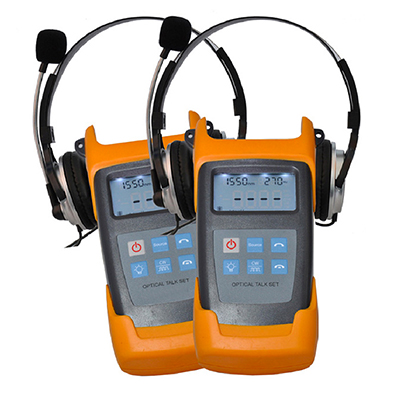

Grandway OTS-5 Optical Talk Set
R14,778.00 ___Incl. VAT
The OTS-5 optical talk set is the new generation optical measuring instrument that our company developed. It is widely used in data networking, testing and maintaining of optical fiber. It can also be used in telecommunication network and cable TV construction.
The talk set has full-duplex operation, and the quality of conversation is high, therefore longer distances will not affects the signal too much. Moreover, besides the telephone conversation function, the talk set also has the function of a stabilized light source.
1. Full duplex numeral pronunciation correspondence function
2. High quality conversation and low background noise
3. Online display and online call
4. Large LCD screen
5. Stabilized laser source function
Applications:
1. Telecommunication project maintenance
2. CATV project maintenance
3. Data network project maintenance
4. Other optical fiber projects
5. Optical communication teaching and research
Specifications:
Wavelength(nm) 1310/1550
Emitter Type FP-LD
Transmission Distance(km) 80
Dynamic Range(dB) 40
Output Power(dBm) -5~-7
Modulation(Hz) CW, 270Hz,1KHz, 2KHz
Output Stability(dB) <=±0.05
Operating Time(hrs) 10 (continuously)
Power Supply Alkaline battery
Power Adapter(V) 8.4

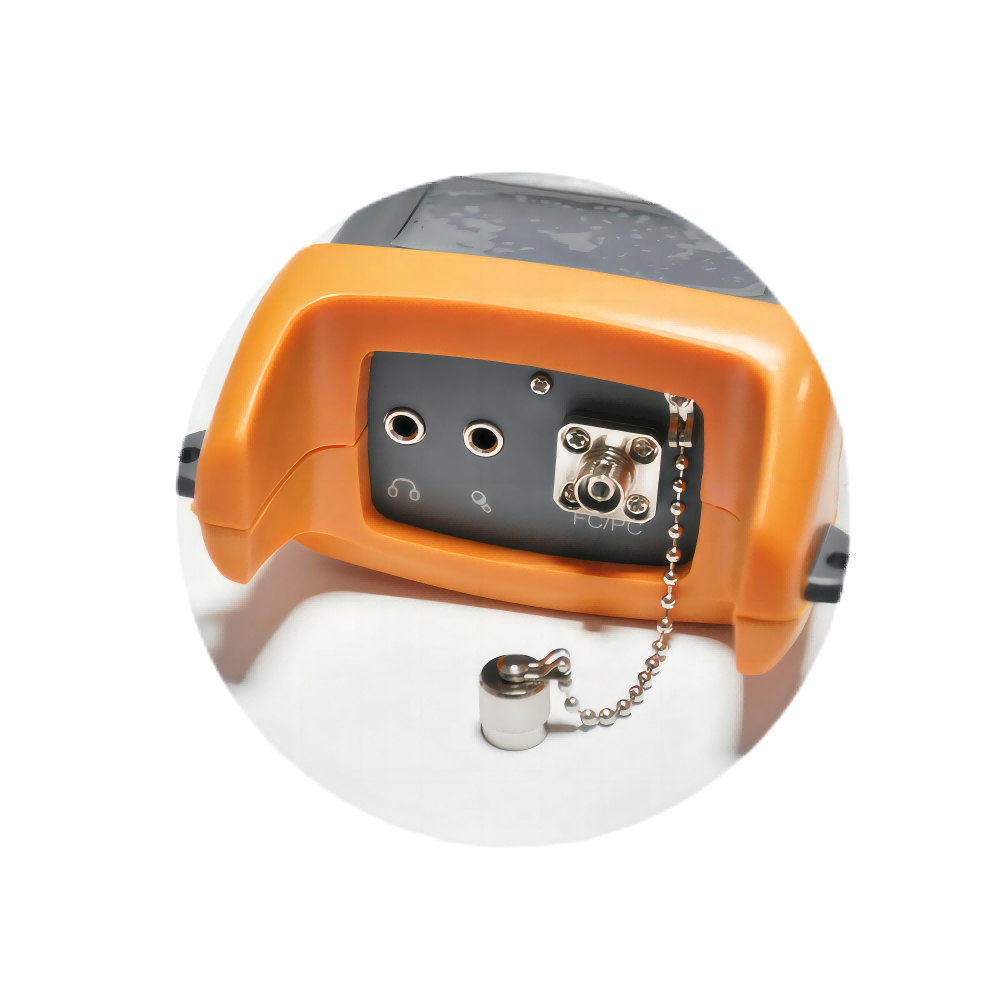

Fiber Connector FC/PC
Dimensions(mm) 192x102x50
Weight(g) 338
Accessories OTS-5 Talk Set, 2pcs*earphones, 6pcs*AA battery, Power adapter, Manual, Certificate, 2pcs*carrying bags
